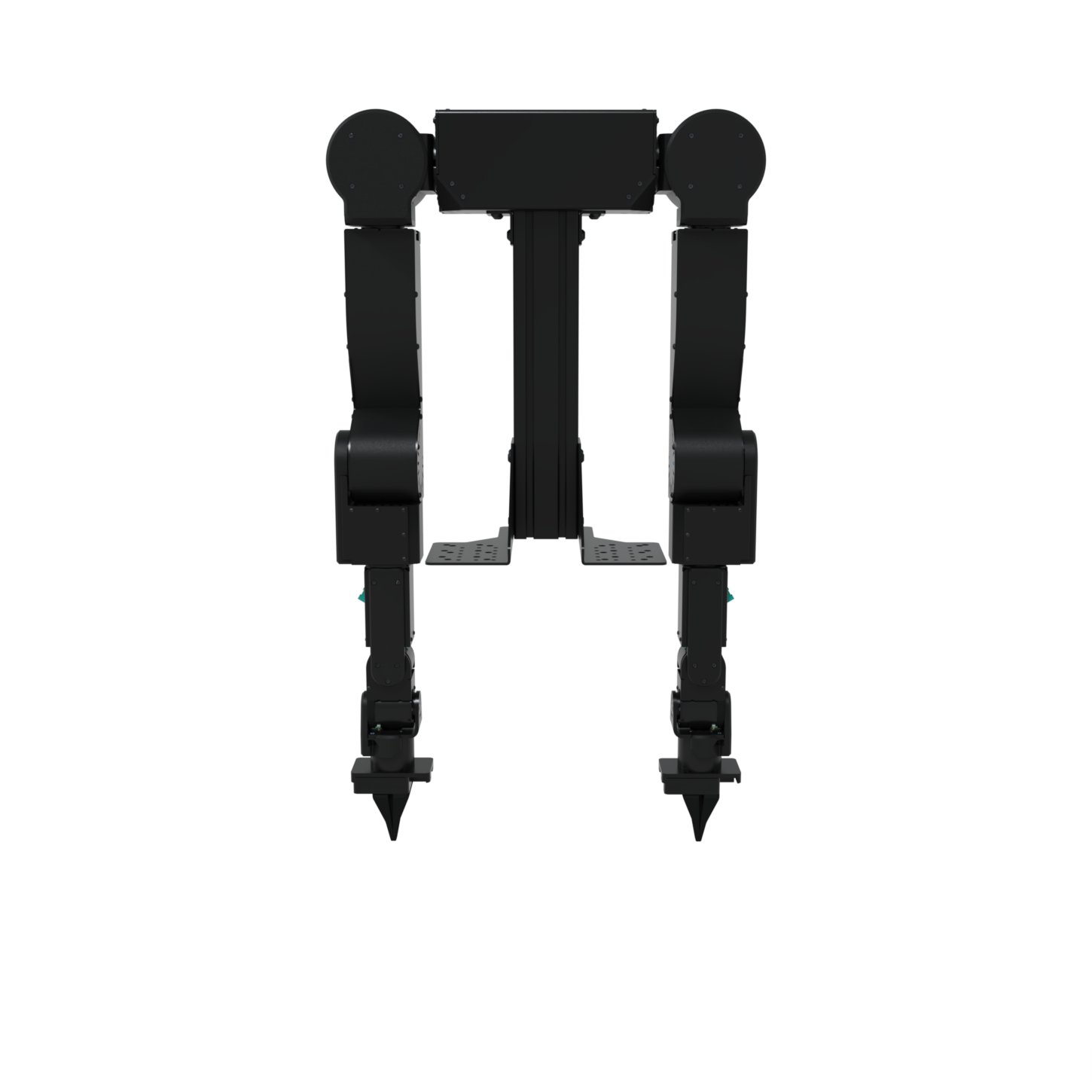

Almond Axol on the Owl Mount
The Owl Mount is a rigid 400mm 8080 aluminum T-slot column with base brackets for 2020, 4040, and 4545 extrusion patterns. It ships with the Axol mounting plate and all table/fixture hardware. See the mount drawing for dimensions.

​
Tools required

You’ll need a hex (Allen) key for the socket head cap screws that hold Axol to the mount:

​
Fixing the column

1

Position the base brackets

Set the column where Axol will work, with its base brackets over the table’s T-slots (or your fixture’s hole pattern). Leave the column’s own T-slots facing where you want to route cables.
2

Bolt the brackets down

Drop T-nuts into the table slots, pass the supplied bolts through the bracket clearance holes that match your extrusion pattern, and tighten them with the 6 mm hex key.
3

Check the column is plumb

Confirm the column stands square to the table before mounting Axol. A lean here shows up as a tilt in every task.

​
Mounting Axol

Axol attaches to its mounting plate with four M8×12 bolts and their locking washers, threaded in from underneath. See the mounting holes diagram for hole positions.
We recommend using two people to lift and place it on the mount.
1

Gather the hardware

Have the four M8×12 bolts and locking washers ready, along with a 6 mm hex key.
2

Place Axol on the mount

With two people, lift Axol and set it on the mount, aligning its mounting holes with the holes in the mounting plate.
3

Insert the bolts from below

From underneath the mounting plate, pass each M8×12 bolt (with its locking washer) up through the plate and into Axol’s mounting holes.
4

Tighten

Tighten all four bolts with the 6 mm hex key to lock Axol in place.

​
Power

Axol is powered at 24V DC, 60A peak through the XT90 on the back of the robot. Two supplies are available, both 1500W (24V, 62.5A) with an XT90 output:
  • Standard Power Supply: the desktop supply that ships with Axol.
  • Industrial Power Supply: an industrial-grade supply with a dedicated E-Stop, an integrated power switch, and a brake resistor that safely dissipates back current from the arms. Built for permanent installations and industrial cells.
1

Place the power supply

Set the supply near the robot so the XT90 cable comfortably reaches the back of the robot.
2

Connect DC

Plug the XT90 cable from the robot into the power supply.
3

Connect the E-Stop (Industrial Power Supply only)

Plug the E-Stop into the supply and place it somewhere accessible. The supply will not turn on without the E-Stop connected.
4

Connect AC and power on

Plug the AC cord from the supply into a wall outlet, then switch the supply on. On the Industrial Power Supply, press the integrated power switch to power the robot.
On the Industrial Power Supply, pressing the E-Stop cuts arm power instantly. To restore power, release the E-Stop and press the power switch again.
The supply is 1500W. Use a dedicated wall outlet.
The Compute Kit is powered separately. Use the DC adapter that ships with it (the ZED Box Orin takes 12–19V, up to 60W).
Abruptly shutting down the Jetson can sometimes corrupt the OS. Shut it down from the OS first, then unplug its adapter.

​
